If you’re using a Graco paint sprayer for your projects, you already know it’s a beast of a machine when it comes to performance. But hey, like any reliable tool, it needs a little love. Regular maintenance isn’t just about keeping it clean—it’s about checking the specific parts that take the most wear and tear. So today, let’s go over the Graco paint sprayer parts you need to check often to keep that sprayer running smooth and giving you those perfect, even coats every time.
Contents
1. Spray Tip – The Business End of Your Sprayer
Alright, first thing’s first—the spray tip. This little guy does all the precision work. If it’s worn out, you’ll see uneven patterns, wasted paint, and possibly even clogging mid-job. That’s the last thing you want when you’re halfway through a wall or fence.
You’ll want to check your spray tip for signs of wear like fuzzy edges or inconsistent fan patterns. Graco recommends replacing the tip after every 40 to 50 gallons of paint sprayed, depending on the type of paint and how thick it is. Keep a few backups on hand just in case, especially if you’re working on a big job.
Also, don’t forget that there are different tips for different projects—fine finish tips, wide spray tips, etc. If you’re using the wrong one, you could be pushing the machine harder than necessary. Always match your tip to the job.
2. Filters – Keeping the Flow Clean
Next up, let’s talk about filters. There are typically three filters in a Graco paint sprayer: the inlet strainer, the pump filter, and the gun filter. Think of them like the kidneys of your sprayer—they keep gunk out of your system.
The inlet strainer prevents large debris from entering the pump. Over time, paint residue and dried flakes can clog this filter. Clean it regularly and replace it when you notice damage or reduced flow. The pump filter, located inside the machine, is often forgotten. But this one’s crucial for protecting your pump from internal build-up. Check it every few uses.
The gun filter—inside the spray gun—catches any last-minute particles before the paint hits the tip. If you’re noticing splatter or clogging at the nozzle, this is the filter to check. Clean all three regularly and replace them as needed, especially if you’re using thick or textured coatings.
3. Pump – The Heart of the System
Now let’s move to the pump—arguably the most important part of your Graco sprayer. It’s what creates the pressure to atomize the paint and push it through the system. If this fails, your entire operation shuts down.
Graco paint sprayer pumps are generally durable, but they aren’t invincible. You need to inspect seals, packings, and the piston rod regularly. If you see paint leaking around the pump area, it might be time to change the packings or the pump altogether.
Lubrication is also key here. Graco makes a special pump armor fluid that helps protect your pump when not in use. Before you store your sprayer—even overnight—flush the system with this fluid. It prevents corrosion, especially if you’re not using the sprayer every day.
4. Hose and Fittings – The Lifelines
Let’s not forget the hose and fittings. This might seem basic, but a lot of sprayer issues—even in high-performance models like the Titan Elite sprayer parts, Titan Elite 3000 sprayers parts, Titan Elite E-20 sprayers parts, and Titan Elite E-15 sprayers parts—can come from overlooked hose damage or loose fittings. Cracks, leaks, or weak pressure at the gun can usually be traced back to this part of the system.
Check your hose for flexibility and cracks. If it’s stiff or showing signs of wear, replace it before it bursts mid-job. Same goes for the fittings—tighten them regularly and replace any that look stripped or leaky.
Also, be mindful of how you store your hose. Don’t bend it too sharply or leave it kinked. Graco hoses are made to last, but only if you treat them right. Use a hose reel if possible, and store it indoors to protect from UV damage.
5. Prime Valve and Pressure Control – The Brains of Operation
Lastly, let’s hit on the prime valve and pressure control. These parts regulate the pressure and flow of paint from the tank to the tip. When they start malfunctioning, you’ll get erratic spray or no spray at all.
The prime valve helps you switch between priming the pump and spraying. If it sticks, leaks, or won’t engage, it can be a quick fix—or a sign of deeper issues. Sometimes it just needs cleaning, other times the seals inside need replacing.

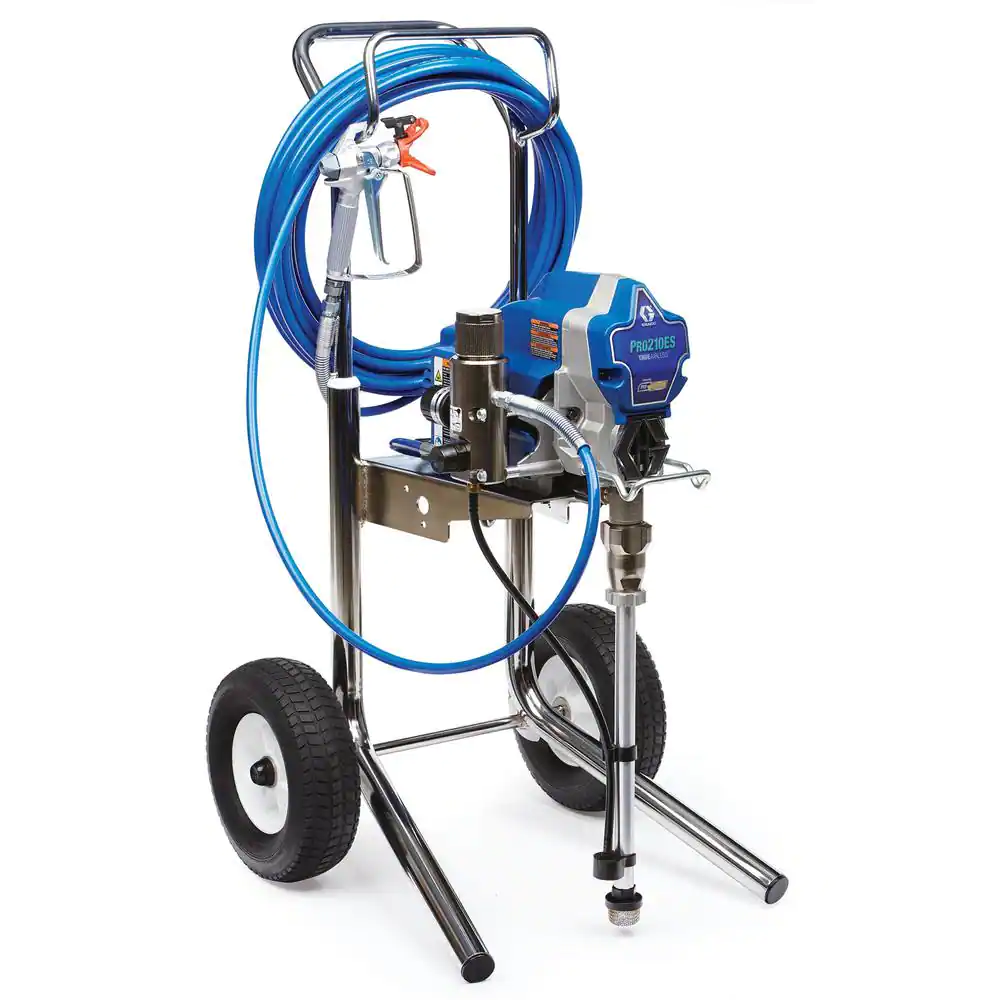

The pressure control knob should turn smoothly and respond well. If it’s feeling off, check the pressure sensor or control board. On some Graco models, like the ProX or Magnum series, this is an electronic component that might need recalibration or replacement after extended use.
Conclusion: Keep It Tight, Keep It Spraying
So there you go—that’s your quick walkthrough of the most important Graco paint sprayer parts you need to check regularly. Think of it like car maintenance. You wouldn’t drive 10,000 miles without checking your oil, right? Same deal here. Regular maintenance saves you time, money, and a ton of frustration on the job.
If you treat your Graco sprayer right, it’ll return the favor with smooth performance and consistent results. So set up a maintenance routine, keep extra parts in your toolkit, and never start a big project without checking those critical components first. Your future self will thank you.
